Opis
Opis
MAG544 je moćnan IPTV set-top box uređaji zasnovan na Linux OS-u
Uređaj ima Amlogic S905Y4 čipset sa četiri jezgra ARM Cortex-A35 procesora
Zahvaljujući novom hardveru, model značajno nadmašuje prethodnu generaciju set-top boksova
Uređaj glatko reprodukuje 4K video i podržava sve moderne kodeke, uključujući HEVC.API
Uređaj podržava osam kanala Dolbi Digital PlusTM audio, opremljen je sa dva USB 2.0 porta i povezuje se na Internet
preko Ethernet porta
HARDWARE
Chipset Amlogic S905Y4-B, 16 500 DMIPS
Processor ARM Cortex-A35 Quad-Core, 2 000 MHz
RAM / Flash 1 GB / 4 GB eMMC
GPU ARM G31 MP2, 850 MHz.
Supports OpenGL ES 3.2, Vulkan 1.1,and OpenCL 2.0
AUDIO AND VIDEO
Audio сodecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2,
APE, FLAC, Dolby Digital Plus™
Video modes PAL, NTSC, 576p, 720p,1080p, 1080i, 2160p
Video сodecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP),AV1, MJPEG streams, H.265 Main/Main
[email protected] High 2160p@60 fps (optional),
H.264 AVC [email protected] 2160p@30 fps,
XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV,M2TS, VOB
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed captions
Playlist formats M3U, M3U8, PLS, CUE

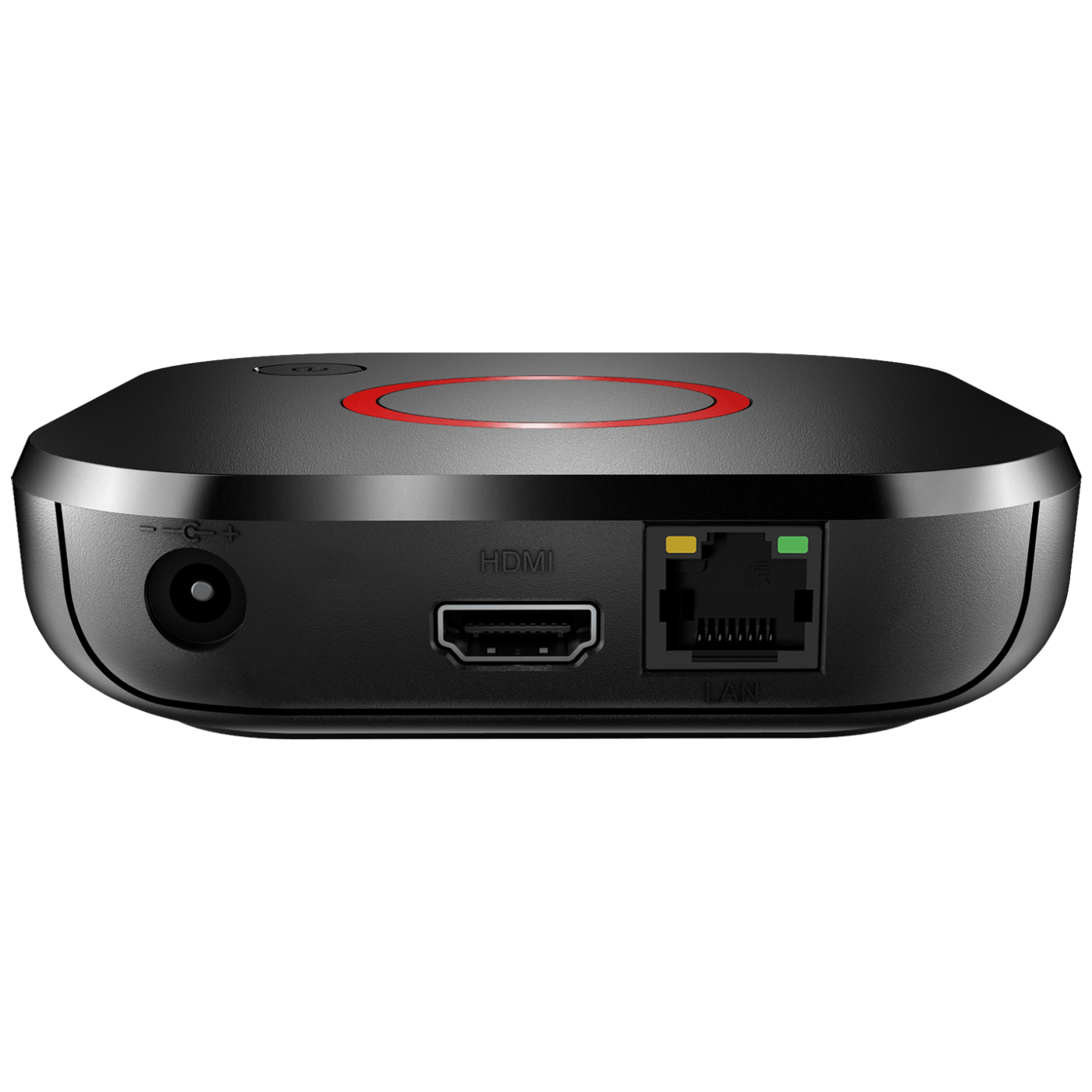

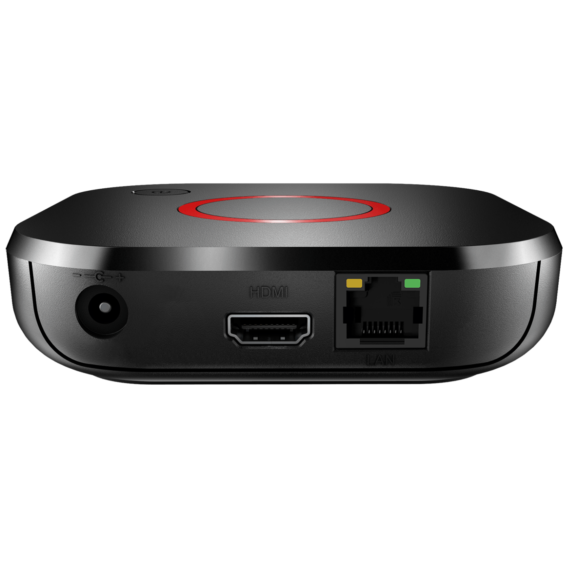

OTHER INTERFACES
Digital AV HDMI 2.1
Ethernet 100 Mbps
USB USB 2.0 x 2
Wi-Fi Built-in 2T2R ac (MAG544w3 only)
POWER PSU DC 5V, 2А
SOFTWARE AND CAS/DRM OS Linux 4.9
DRM/CAS Upon request
Dimenzije:
115 х 115 х 28 mm
Težina: 170 g
